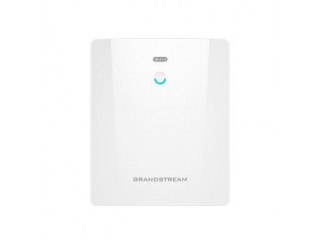

Grandstream GWN7664ELR High-Performance Outdoor AX6000 Wi-Fi 6 Dual-band 4x4:4 MU-MIMO with OFDMA technology Access Point, PoE

The GWN7664ELR is a high-performance outdoor long-range 802.11ax Wi-Fi6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces. It offers IP67-level weatherproof capability, dual-band 4×4:4 MU-MIMO with OFDMA technology and a sophisticated antenna design for up to 6 Gbps wireless throughput that supports 512 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664ELR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. This device features support for advanced QoS, low-latency
real-time applications, mesh networks, captive portals, 2.5 Gigabit Ethernet port with PoE+, and a 2.5 Gigabit SFP port. TheGWN7664ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Key Features & Benefits:

• Outdoor 802.11ax (Wi-Fi 6) Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology Access Point
• 8 individual internal antennas, 2.4GHz, gain 5.5dBi, 5GHz, gain 6.5dBi
• 6 Gbps aggregate wireless throughput
• Up to 300-meter coverage range
• Supports 512 concurrent Wi-Fi client devices
• 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
• Up to 300m coverage range
• 1x 2.5 Gigabit RJ45 Port with self power adaptation upon auto detection of PoE+
• 1x 2.5Gbps SFP port
• 1x Reset Pinhole, 1x Kensington lock
• 1 tri-color LEDs for device tracking & status indication
• 1 single-color LED for SFP indication
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Embedded controller manages up to 50 local GWN APs
• GWN.Cloud offers unlimited AP management & GWN Manager offers on-premise software AP management
• Wall mount or pole mount, kits included (The mounting kits can be rotated and adjusted by 60°)
• IP67-level weatherproof grade
• 3 Year Warranty

Specifications:

• Wi-Fi Standards: IEEE 802.11 b/g/n/ac/ax
• Antennas: 8 individual internal antennas, 4 per band (2.4GHz, gain 3.5dBi and 5GHz, gain 4.5dBi)
• Wi-Fi Data Rates:
  5G:
  - IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
  - IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
  - IEEE 802.11n: 6.5Mbps to 600Mbps
  - IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  2.4G:
  - IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
  - IEEE 802.11n: 6.5Mbps to 600Mbps
  - IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  - IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands:
  - 2.4GHz Radio: 2400 - 2483.5 MHz
  - 5GHz Radio: 5150 - 5895 MHz
• Channel Bandwidth:
  - 2.4G: 20 and 40 MHz
  - 5G: 20, 40, 80 and 160 MHz (x4)
• Wi-Fi and System Security:
  - WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
  - WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures
  - Unique security certificate and random default password per device
• MU-MIMO:
  - 4×4:4 2.4GHz
  - 4×4:4 5GHz
• Coverage Range: Up to 300 meters
• Maximum TX Power:
  - 5G: 23.5dBm
  - 2.4G: 24.5dBm
• Receiver Sensitivity:
  2.4G:
  - 802.11b: -97dBm@1Mbps, -89dBm@11Mbps
  - 802.11g: -93dBm @6Mbps, -75dBm@54Mbps
  - 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7
  - 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
  5G:
  - 802.11a: -93dBm @6Mbps, -75dBm @54Mbps
  - 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
  - 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9
  - 802.11ax 20MHz: -64dBm @ MCS11
  - 802.11ax 40MHz: -61dBm @MCS11
  - 802.11ax 80MHz: -58dBm @MCS11
  - 802.11ax 160MHz: -55dBm @MCS11
• SSIDs: 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
• Concurrent Clients: 512
• Network Interfaces: 1x 2.5G RJ45 Port and 1x 2.5G SFP Port
• Auxiliary Ports: 1x Reset button
• Mounting: Wall mount or pole mount, kits included (The mounting kits can be rotated and adjusted by 60°)
• LEDs: 3 tri-color LEDs for device tracking and status indication
• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management:
  - Embedded controller can manage up to 50 local GWN APs
  - GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  - GWN Manager offers premise-based software controller for up to 3,000 GWN APs
• Power and Green Energy Efficiency:
  - PoE 802.3at
  - Maximum Power Consumption: 24W
• Environmental:
  - Operation: -30°Cto 60°C
  - Storage: -30°C to 60°C
  - Humidity: 10% to 90% Non-condensing
• Physical:
  - Unit Dimension: 260 x 310 x 59mm
  - Unit Weight: 1.44Kg
  - Entire Package Dimension: 469 x 377 x 137mm
  - Entire Package Weight: 3.06Kg
• Package Content:
  - GWN7664ELR 802.11ax Wireless AP
  - Mounting Kits
  - Quick Start Guide
• Compliance: FCC, CE, RCM, IC
