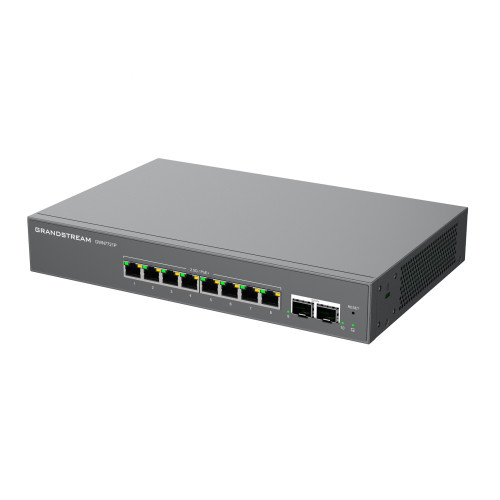

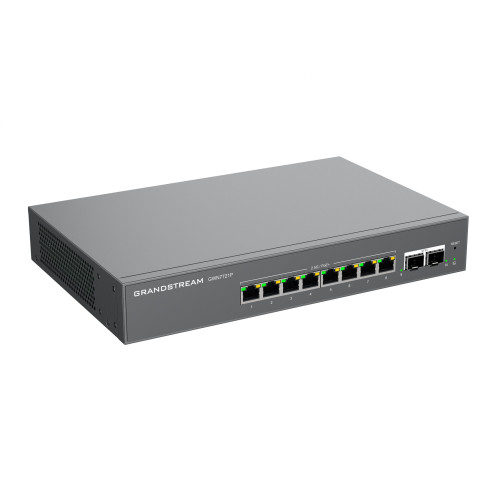

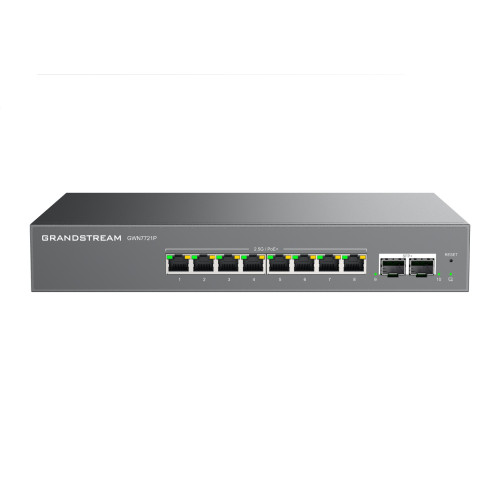

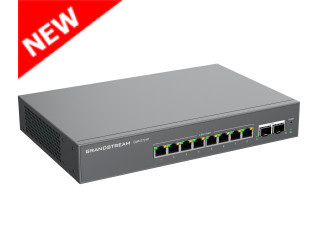

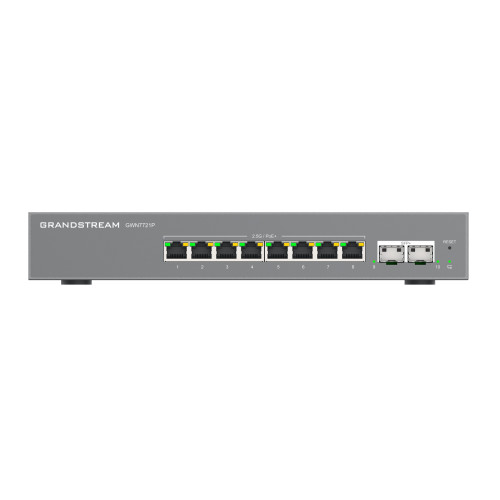

Grandstream GWN7721P 10-Port L2-Lite Managed 2.5Gigabit PoE Switch with 8x 2.5G Ethernet Ports and 2x 10G SFP+

The GWN7721P is a 10-port Layer 2 Lite Managed PoE Switch, equipped with 8x 2.5G Ethernet ports and 2x 10Gigabit SFP+ ports, suitable for small-to-medium businesses to build scalable, secure, and smart networks. All 8 Ethernet ports support PoE power output, suitable for devices such as IP phones, cameras, and Wi-Fi access points. This device supports complex VLAN traffic segmentation, integrates Port-based, DSCP/802.1p QoS priority management modes, and bandwidth control which greatly improving the overall network performance. Supports IGMP Snooping and comprehensive security protection. The GWN7721P is easy to manage through the local web user interface, GWN Manager and the cloud using the Grandstream Device Management System (GDMS). Also supports both desktop and wall-mount installation and is widely applicable in network construction scenarios across industries such as hotels, home offices, and small to medium-sized enterprises.

Key Features & Benefits:

• 8x 2.5Gigabit Ethernet ports and 2x 10Gigabit SFP+ ports
• Ports 1-8 support PoE, smart power control to support dynamic PoE/PoE+ power allocation per port
• Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults
• SNMPv2 remote monitoring, fault diagnosis, configuration management
• STP/RSTP to guarantee fast convergence, ensure network stability and provide link load balance
• Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Netwoking Management
• DHCP Snooping ensures DHCP packets are only allowed from trusted ports to keep the DHCP environment safe
• Built-in QoS allows for prioritization of network traffic
• 3 Year Warranty

Specifications:

• Model: GWN7721P
• Network Protocol: IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• 2.5 Gigabit Ethernet Ports: 8
• Ports 1-8 support 802.3af/at standard
• Max. Total PoE Output Power: 130W
• Max. Output Power per PoE Port: 30W
• 10Gigabit SFP+ Ports: 2, supports 1Gbps/2.5Gbps/10Gbps
• Max. No. of Supported modules:
  SM-10G: 2
  MM-10G: 2
  RJ45-10G: 1
• Auxiliary Ports: 1 Reset Pinhole
• Power Supply: Internal 110~220V AC
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 40Gbps
• Switching Capability: 80Gbps
• Jumbo Frame: 1518/2048/3072/4096/5120/6144/7168/8192/9216
• Forwarding Rate: 59.52Mpps
• Pack Buffer: 8Mb
• MAC: 16K MAC address capacity
• VLAN:
  Supports up to 32 VLANs (out of 4K VLAN IDs)
  Port-based VLAN, 802.1Q VLAN
  DHCP Snooping
• LAG: 5
• Multicast: IGMP Snooping, Report Message Suppression
• QoS:
  Auto prioritization of the incoming port of the packet
  Priority Mapping
  Queue scheduling, including SP, WFQ
  Supports port priority, 802.1P priority, and DSCP priority
  Bandwidth control
  Rate limit
• DHCP: DHCP client
• Maintenance:
  Backup and restore, system reboot , Factory Reset, firmware upgrade, Support MAC address search, SNMP, LLDP
  Monitoring including port statistics, port mirroring cable test, Ping
• Security:
  DHCP Snooping
  Spanning tree
  Loop prevention
  PoE Watchdog
  Kensington Security Slot (Kensington Lock) support
• Casing: Metal
• Mounting: Desktop / Wall-Mount / Rack-Mount
• LED Indicators:
  Per device: Power - Green
  Per port: Link/Activity - Green
  Port 1-8: PoE power state - Yellow
• Environmental:
  Operating Temperature: 0 to 45 °C
  Storage Temperature: -20 to 60 °C
  Operating Humidity: 10% to 90% Non-condensing
  Storage Humidity: 10% to 90% Non-condensing
• Unit Dimensions (LxWxH): 280 x 180 x 44 mm
• Unit Weight: 1.45 kg
• Package Dimensions (LxWxH) : 361 x 195.5 x 52 mm
• Package Weight: 2.06 kg
• Package Contents:
  1x Switch
  1x 1.2m(10A) AC Cable
  1x Ground Cable
  4x Rubber Feet
  2x Lug Ear
  ​1x QIG
• Compliance: FCC, CE, RCM, IC

GWN7721P PoE & VLAN Feature:

1. The switch will maintain PoE power supply during the soft restart to ensure data such as camera feeds are not lost.
2. Real-time dynamic display and control of PoE power to detect anomalies in a timely manner.
3. The PoE Watchdog function detection device is connected to the destination IP address. When the link fails, the PoE port will automatically cut off the power and restart.
4. Supports port VLAN and 802.1Q VLAN, allowing users to flexibly divide VLANs according to the requirements.
