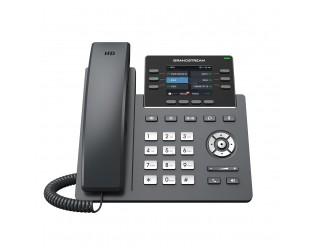

Grandstream GRP2613W 6-line Carrier-Grade IP Phone with integrated Wi-Fi 6 and Bluetooth®

Grandstream GRP2613W is a powerful 6-line carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including 24 virtual multi-purpose keys (VPKs), integrated Wi-Fi 6 and Bluetooth®, Integrated PoE (802.3af), dual Gigabit ports, a color LCD with swappable face plates for easy logo customization and more. The GRP series includes carrier- grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2613W is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the needs of desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2613W offers an easy-to-use and easy-to-deploy voice endpoint.

Key Features & Benefits:

• 6-Line Professional IP Phone Designed for Mass Deployment and Easy Management
• Supports SIP accounts and 6 multipurpose line keys
• Swappable face plates to allow for easy logo customization
• Dual switched autosensing 10/100/1000 Mbps Gigabit ethernet ports with integrated PoE
• Equipped with noise shield technology to minimize background noise
• HD audio with support for all major codecs, including wideband codecs G.722 and Opus
• Up to 24 digital BLF keys
• Integrated dual-band (2.4GHz and 5GHz) Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• Integrated Bluetooth®
• Integrated dual-band  (2.4GHz and 5GHz) Wi-Fi 6 (802.11a/b/g/n/ac/ax) and  Bluetooth® (GRP2613W only)
• Integrated Power-over-Ethernet (802.3af)
• Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
• 2 Year Warranty

 PartnerNET Grandstream GRP2613W Datasheet

Specifications:

• Protocols/Standards:
  - SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP
  - DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP
  - STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6
• Network Interface: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• Integrated dual-band (2.4GHz and 5GHz) Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• Integrated Bluetooth®
• 2.8 inch (320x240) TFT color LCD Graphic Display
• Feature Keys:
  - 6 SIP accounts, 4 XML program-mable context sensitive softkeys, 5 navigation/menu keys
  - 11 dedicated function keys for: Message (with LED indicator), Phonebook, Transfer, Conference Hold, Headset, Mute, Send/Redial, Speakephone, Vol+, Vol-
• Auxiliary Port: RJ9 headset jack (allowing EHS with Plantronics headsets)
• Voice Codecs and Capabilities:
  - Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS,
  - in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
• Telephony Features:
  - Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appea-rance(SCA)/bridged-line-appearance(BLA)
  - Downloadable phonebook (XML, LDAP, up to 1000 items), call waiting, call log (up to 2000 records)
  - XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking
  - Personalized music ringtones and music on hold, server redundancy and fail-over
• HD Audio: HD handset and speakerphone with support for wideband audio
• QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security:
  - User and administrator level passwords, MD5 and MD5-sess based authentication
  - 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
• Upgrade/Provisioning:
  - Firmware upgrade via FTP/TFTP/TFTPS/HTTP/HTTPS
  - Mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency:
  - Power adapter (EU PSU) included: Input 100-240V/Output 5V, 0.6A
  - Integrated Power-over-Ethernet(802.3af)
  - IEEE 802.3az Energy-Efficient Ethernet
  - Max. power consumption 3W (power adapter) or 3.8W (PoE)
• Environmental:
  - Operating Temperature: 0°C to 40°C
  - Storage Temperature: -10°C to 60°C
  - Humidity: 10% to 90% Non-condensing
• Physical:
  - Unit Dimensions: 203 x 193 x 52.1 mm
  - Unit Weight: 0.554 kg
  - Package weight: 0.936 kg
  - Package Dimensions 296 x 210 x 82 mm

Package Contents:

• GRP2613W phone
• Handset with spiral cord
• Phone stand
• Power adapter (EU PSU) 5V - 0.6A
• Network cable
• Quick Installation Guide
• GPL license

Compliance:

• CE, FCC, IC
