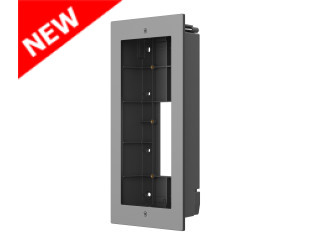

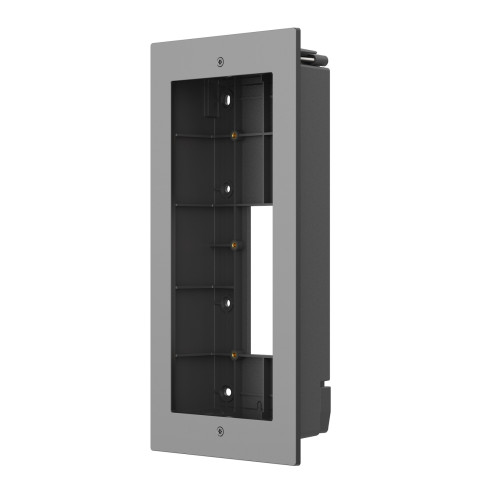

Grandstream GDS372X FLUSH-MOUNTING BOX In-Wall Mounting Kit for the GDS3725/GDS3726 Smart IP Video Door Stations

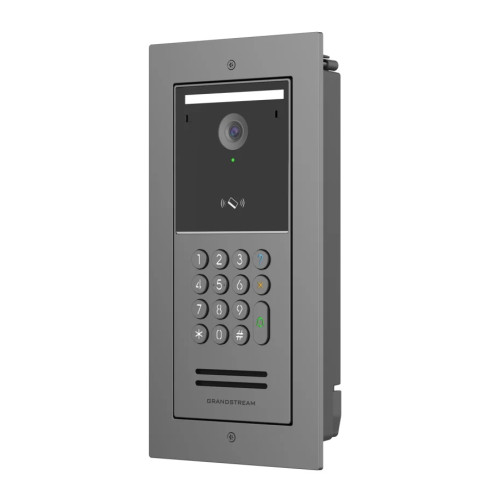

The Grandstream GDS372X FLUSH-MOUNTING BOX In-Wall Mounting Kit is available for use with the GDS3725/GDS3726 IP Video Door Stations. This mounting kit allows the GDS3725/GDS3726 to be mounted flushed within a wall. It supports solid wall, stud and drywall (hollow wall) installation. When installing the GDS3725/GDS3726 or the In-Wall Mounting kit, please follow local building and electrical code. It includes all components required for mounting, securing, and aligning the unit properly within the wall cavity. The device is suggested to be installed with the bottom of the device 50-52 inches above the ground

Specifications:

• Model: GDS372X FLUSH-MOUNTING BOX
• Material: In-wall box-plastic/Decorative cover - Zinc alloy
• Compatibility: GDS3725/GDS3726
• In-wall box Dimensions: 130 x 250.3 x 41.5 mm
• In-wall box Weight: 0.179 Kg
• Decorative cover Dimensions: 125.5 x 254.8 x 4.5 mm
• Decorative cover Weight: 0.254 Kg
• Mounting: Flush-mount

Package Contents:

• 1x In-Wall Bracket (Main frame for device installation)
• 1x Mounting Template (Used for hole marking & cutting guide)
• 1x Front Frame (Decorative outer frame for finish)
• 4x Cable Clamp (Used for securing internal wiring)
• 2x Back Box (For cable & module containment)
• 6x Plastic Wall Anchors + Screws (PA 3.5 × 35 mm)
• 7x Mounting Screws (KM 3 × 5.5 mm)
• 3x Front Frame Screws (KM 3 × 6 mm)
• 1x Allen Key (Used for tightening the frame screws)
• 1x Quick Installation Leaflet (Printed reference guide)
