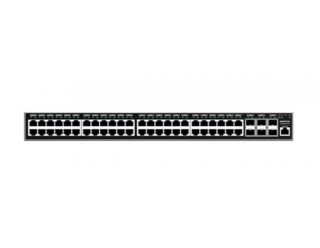

Grandstream GWN7816 48-Port Gigabit Enterprise-Grade Layer 3 Managed Network Switch with 6 SFP+ Ports

GWN7816 ia a 48-port Gigabit, Enterprise-Grade, L3 managed network switch that allows medium-to-large enterprises to build fully manageable, scalable, secure, high performance & smart business networks. Supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization & comprehensive security capabilities against potential attacks. GWN7816 can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GWN.Cloud & GWN Manager, Grandstream’s cloud and on-premise network management platform. With an advanced set of features, comprehensive security protection & flexible management options, Grandstream GWN7816 is ideal for enterepsies and medium-to-large businesses who require high-performance networks with maximum capacity and control.

Highlights:

• 48 Gigabit Ethernet ports & 6 Gigabit SFP+ ports
• Supports deployment in IPv6 & IPv4 networks
• Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control & more
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch
• GWN. Cloud, GWN Manager & CLI management support
• Built-in QoS allows for prioritization of network traffic
• Supports stacking for easy management on one interface while creating redundant backup between multiple devices

Key Features & Benefits:

• Network Protocol: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
• 48 Gigabit Ethernet Ports
• 6 SFP+ Ports (≤ 5m DAC cable support)
• Maximum amount of supported SFP modules: 6x SM-10G, 6x MM-10G, 3x RJ45-10G
• 1x Console Port
• Includes one 70W PSU by default, support for one Hot swap PSU (optional, sold separately)
• 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput 108Gbps
• Switching Capability 216Gbps
• Forwarding Rate 160.704Mpps
• Packet Buffer 16Mb
• Network Latency < 4μs
• 1x tri-color LED for device tracking and status indication
• 2x bi-color LEDs for per power supply PSU1/2
• 54x green-color LEDs for data transferring
• Cooling: 4 Fans
• Desktop, or Rack-Mount (rack-mounting kits included)
• Unit Dimensions (LxWxH): 440 x 300 x 44mm
• Unit Weight: 4.7Kg
• Compliance: FCC, CE, RCM, IC, UKCA
• 3 Year Warranty

Switching:

• 16K MAC addresses, including static, dynamic and filtering MAC address
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 27 link aggregation
• Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)

Routing:

• Static routing
• Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
• Policy routing (pending)

Multicast:

• IGMP Snooping with IGMPv2 and IGMPv3
• MLD Snooping with MLDv1 and MLDv2
• MVR (pending)

QoS/ACL:

• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 4K ACL for Ethernet, IPv4 and IPv6

DHCP:

• DHCP server
• DHCP relay
• DHCP Option 82, 60, 160 and 43

Maintenance:

• CPU and memory monitoring
• Fault detection and alarm for power supply and fan
• SNMP, RMON, LLDP&LLDP-MED
• Backup and restore, syslog
• Diagnostics including Ping, Traceroute, port mirroring, UDLD (pending) & copper test

Security:

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection
• Root protection (pending) and loopback protection (pending)
• Kensington Security Slot (Kensington Lock) support

Environmental:

• Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)
• Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Package Contents:

• GWN7816 Enterprise Gigabit L3 Managed Network Switch
• 1x 1.2m AC Cable
• 1x 25cm Ground Cable
• 4x Rubber Footpads
• 2x Front Rack-Mounting Kits
• 8x Screws(KM 3*6)
• 1x Quick Installation Guide
